¡¡¡¡The positive choke valve is used to be matchedwith X'mas tree or wellhead assembly, which is appli-cable for flow-rate adjustment, that is, to replace thechoke is help for alternation of flow-way cross-area andflow-rate control.
¡¡¡¡
Main technological parameters
¡¡¡¡
Rated pressure£º2000 psi -15000psi
¡¡¡¡
Working temperature£ºPU
¡¡¡¡
Working medium£ºetroleum¡¢natural gas
¡¡¡¡
Choke bore£º¡é3¡¢¡é4¡¢¡é5¡¢¡é6¡¢¡é7¡¢¡é8¡¢¡é9¡¢¡é10¡¢¡é11¡¢¡é12
¡¡¡¡
Structural feature
¡¡¡¡
All pressing parts are made of alloy steel and haveenough tensile strength,that ensures the valve safe andreliable at rated working pressure.
¡¡¡¡
Choke is made of carbide with fine grind & erosionresistance properties.
¡¡¡¡

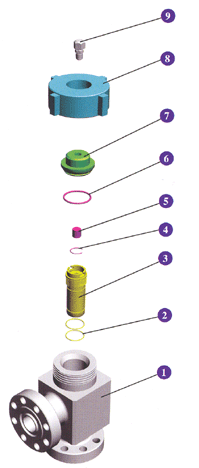

Parts List£º
Item |
Component |
Qty |
Material |
Remark |
1 |
Body |
1 |
30CrMo |
|
2 |
O-Ring |
2 |
NBR |
|
3 |
Valve Core |
1 |
30CrMo |
|
4 |
Circlip |
1 |
65 Mn |
|
5 |
Choke Bean |
1 |
YG8 |
|
6 |
O-Ring |
1 |
NBR |
|
7 |
Bonnet |
1 |
30CrMo |
|
8 |
Cover Nut |
1 |
45 |
|
9 |
Grease Fitting |
1 |
Standard |
|
|
|
|
| |
|
| |
|
| |
|
|
|
